Seat pans are complete.
May 30,2020
Wings, Check!
May 20, 2020
Roll and Panel
May 11, 2020
This should make the plane roll.
And the panel has all the instruments in place and installed.
Installing Pitot Mast
May 10, 2020
Push/Pull Tubes
May 9, 2020
Building push/pull tubes at the top and aileron bell crank at the bottom.
Flaps Complete
May 6, 2020
Riveting Flaps
May 6, 2020
Starting the Flaps
May 5, 2020

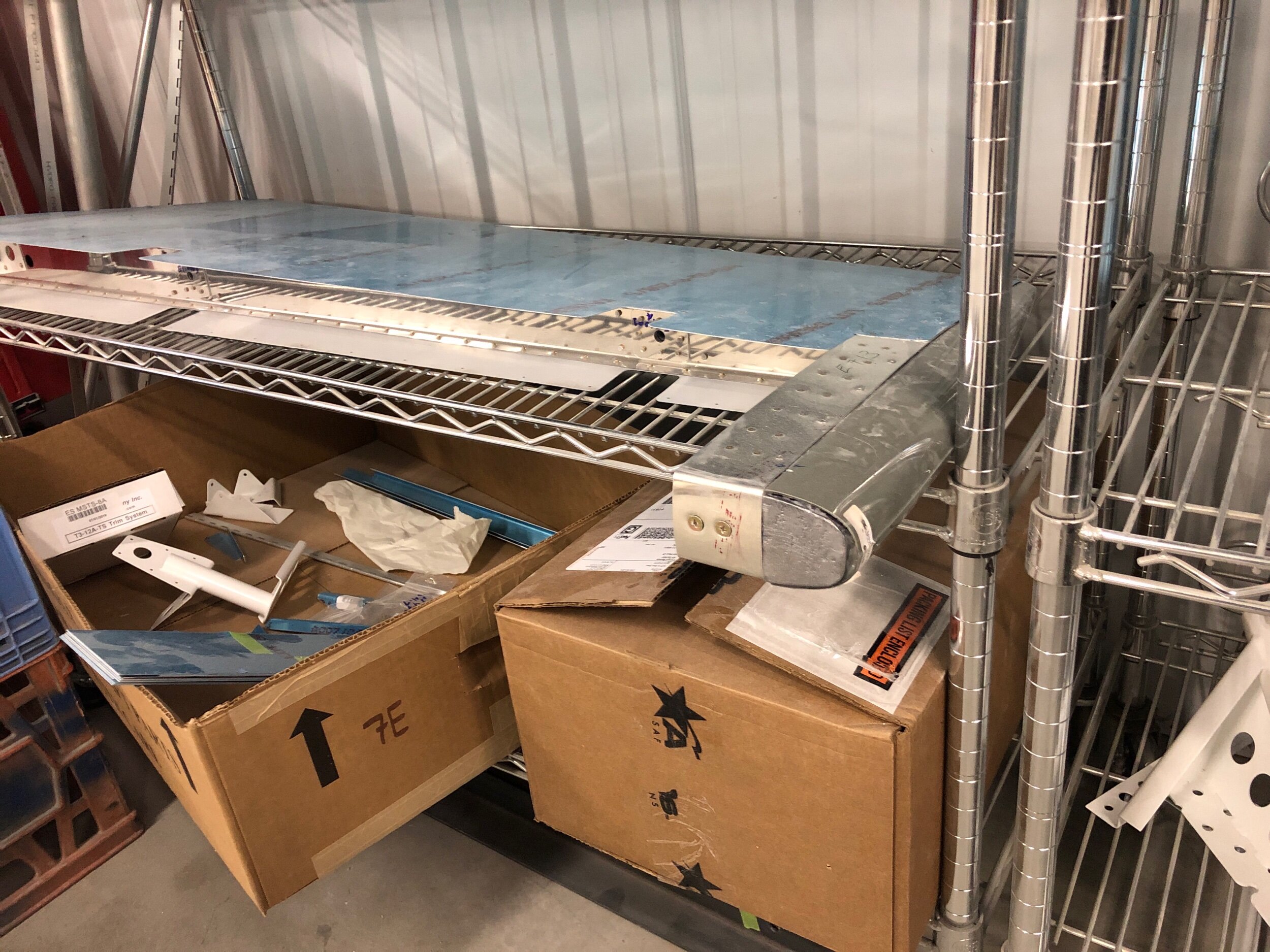

Much Awaited Arrival
March 31, 2020
Fuselage/ Forward Bulkheads
March 27, 2020
Forward bulkheads were fit today.
Fuselage Work
March 26, 2020
A couple of pics highlighting the main lading gear mounts.
This is the Aft Deck.
These are the forward canopy decks.
Guess What I Got Today?
March 16. 2020
And fuselage turned over ready for avionics.

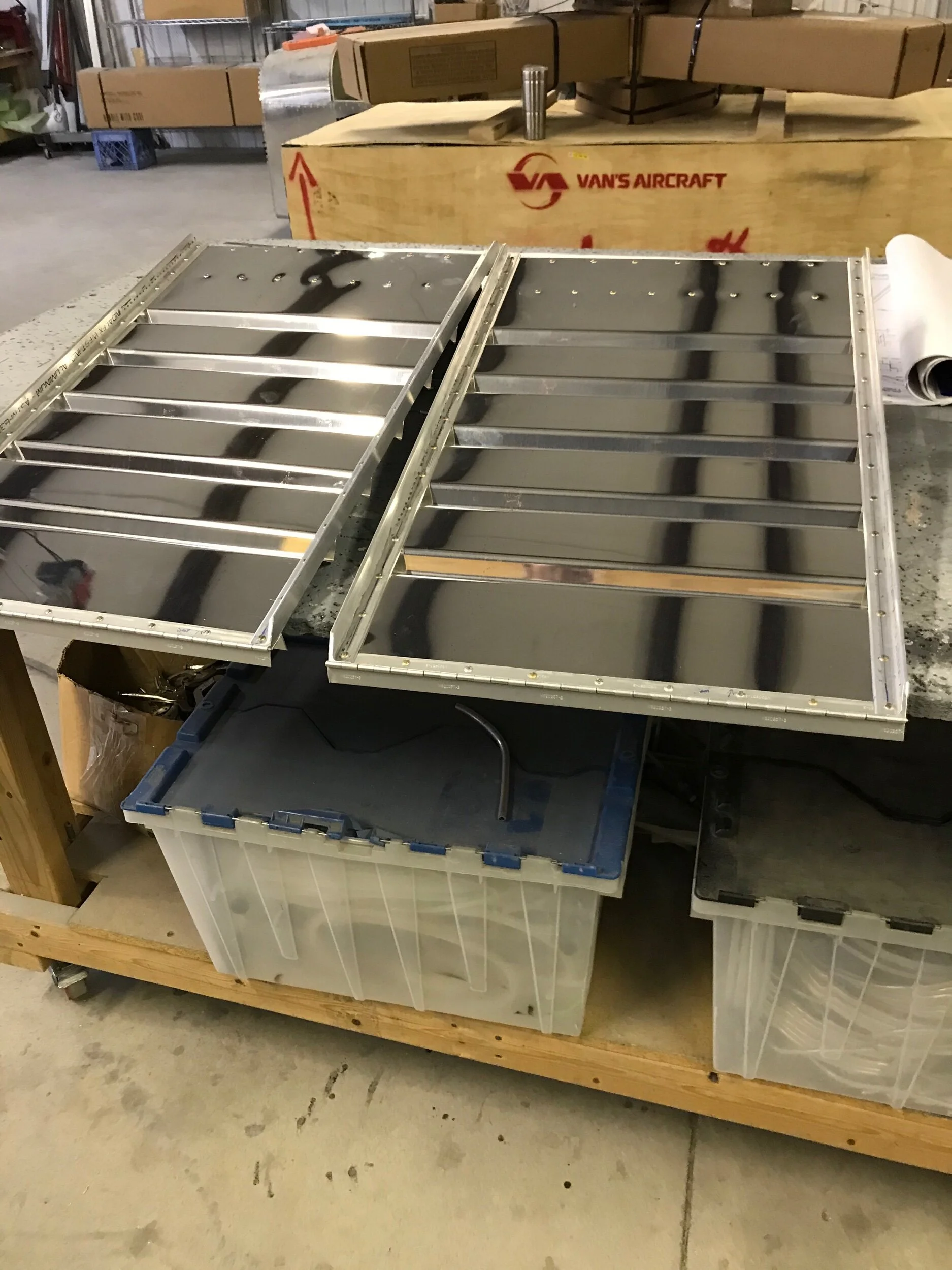

Stiffeners Are Being Riveted On Left Elevator
March 15, 2020
Stiffeners complete.
Left Elevator / Fuselage
March 14, 2020
The fuselage is turned over waiting on the avionics. They are on a brown truck at the moment.
Also on the day’s activities is dimpling the skins for the left elevator.
Started On Left Elevator
March 13, 2020
All stiffeners are match drilled and ready for dimpling and deburring.
Right Elevator Complete
March 12, 2020
Fit and installed the tip for the right elevator. Now for the left elevator.

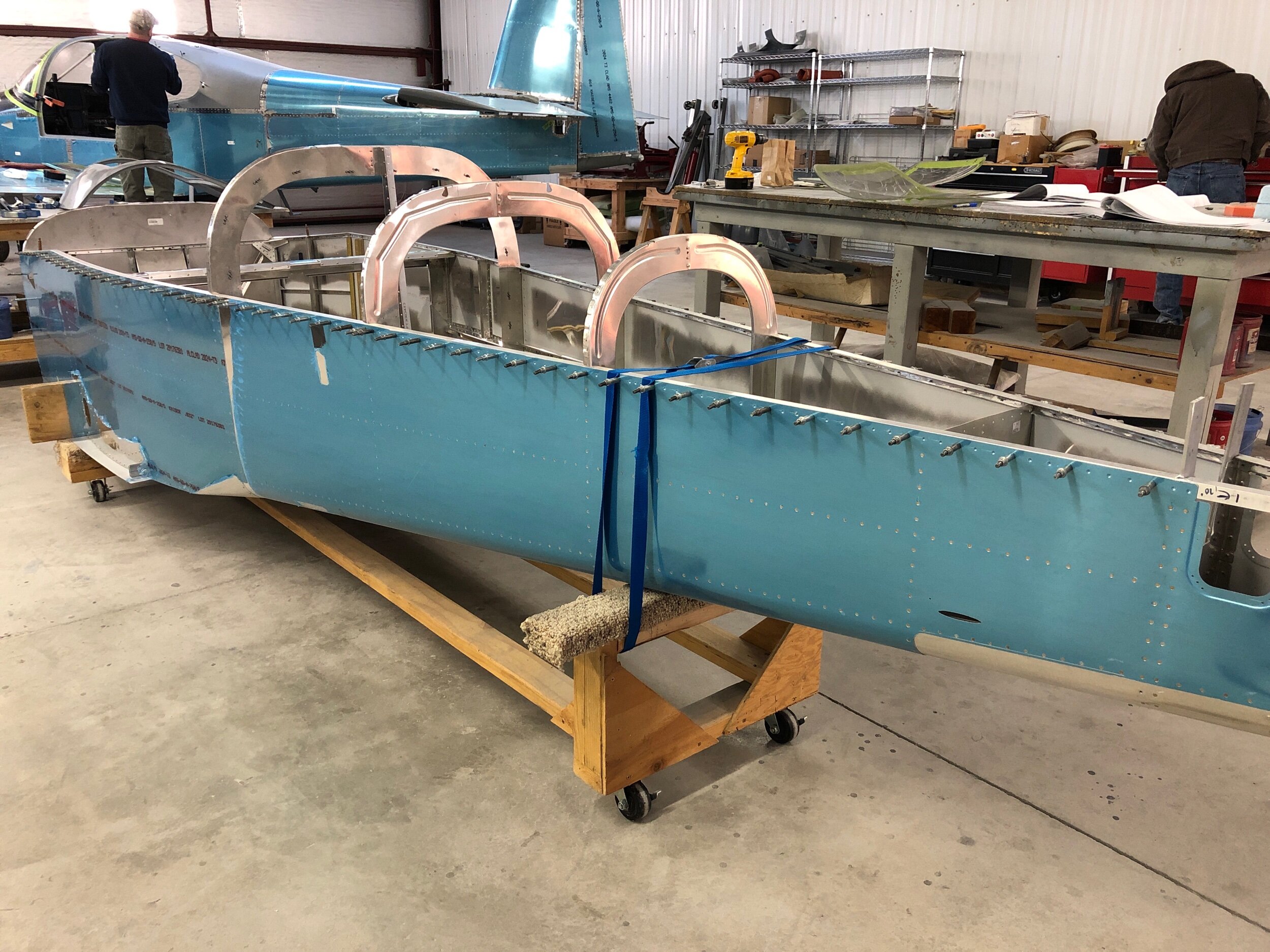

Fuselage Skins Mostly Riveted
February 28, 2020
Ready For the Rivets
February 27, 2020
Notice rivets under the tape.
All the Dimpling Is Done.
February 26, 2020

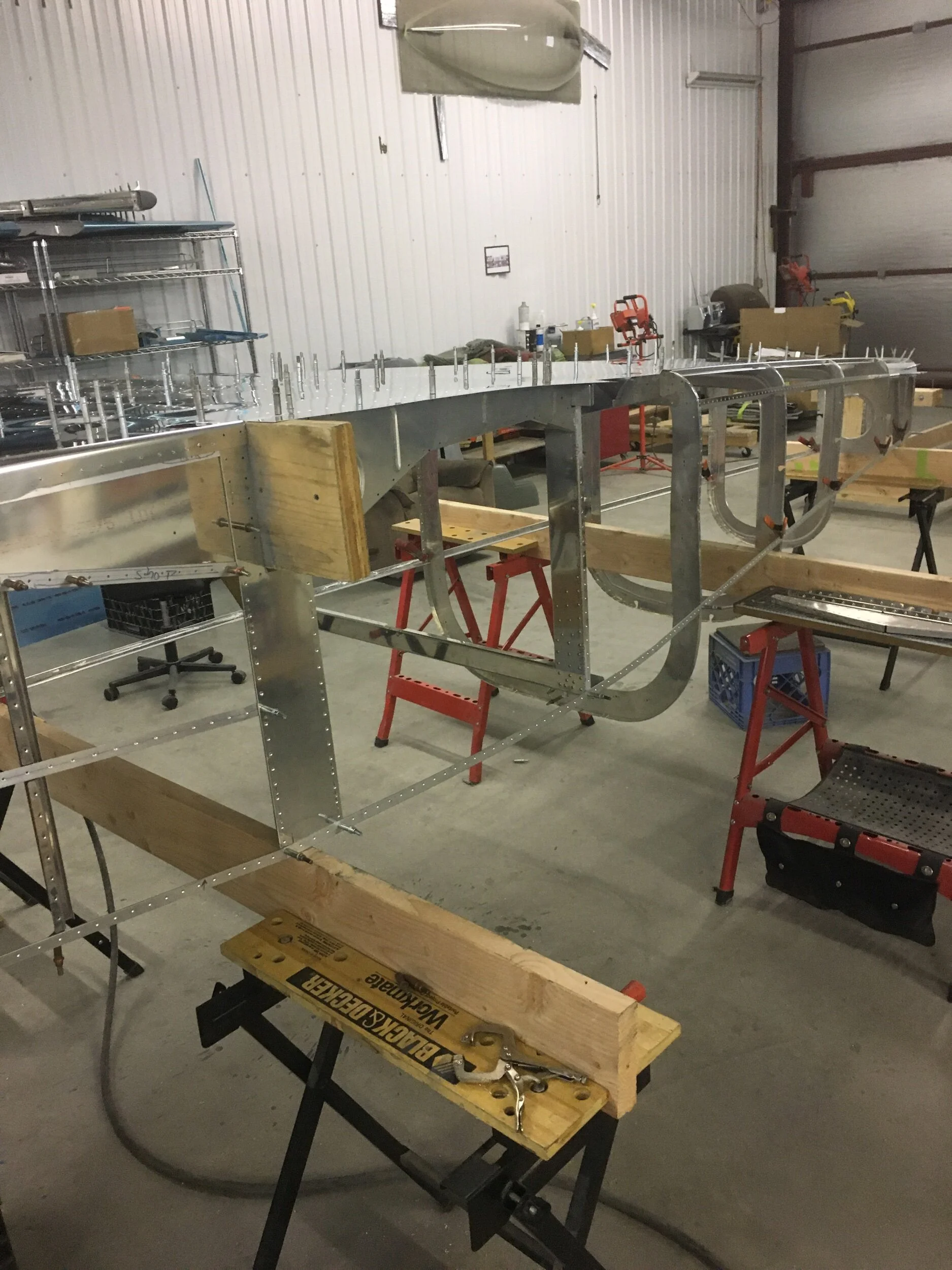

Fuselage Continued
February 22, 2020
Drilled and ready for dimpling.
